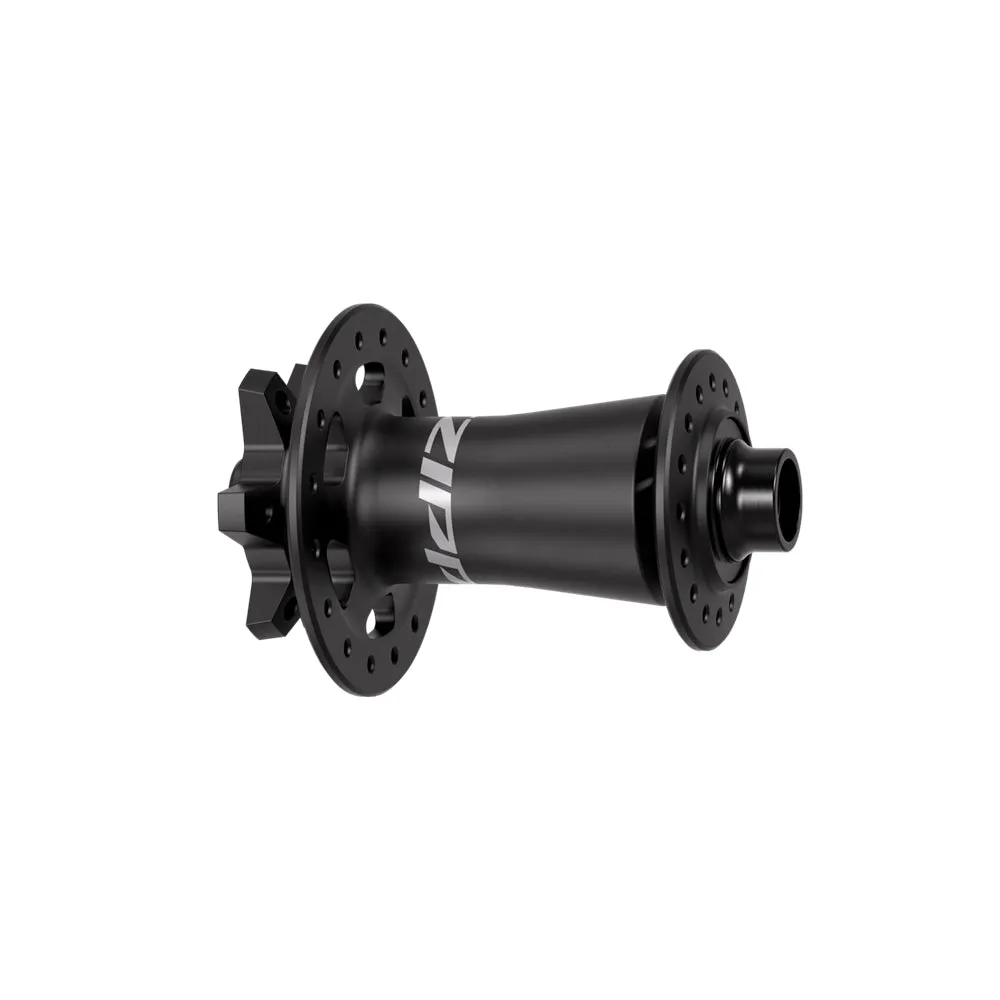

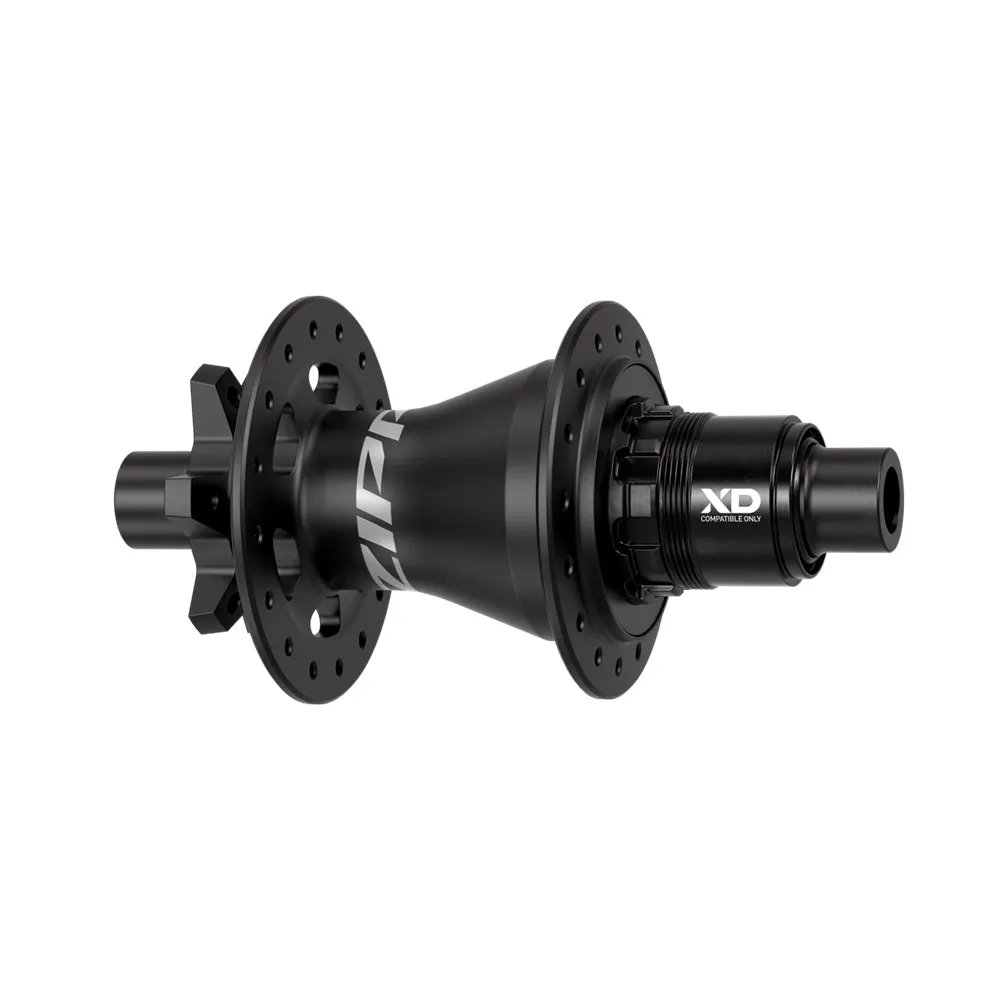

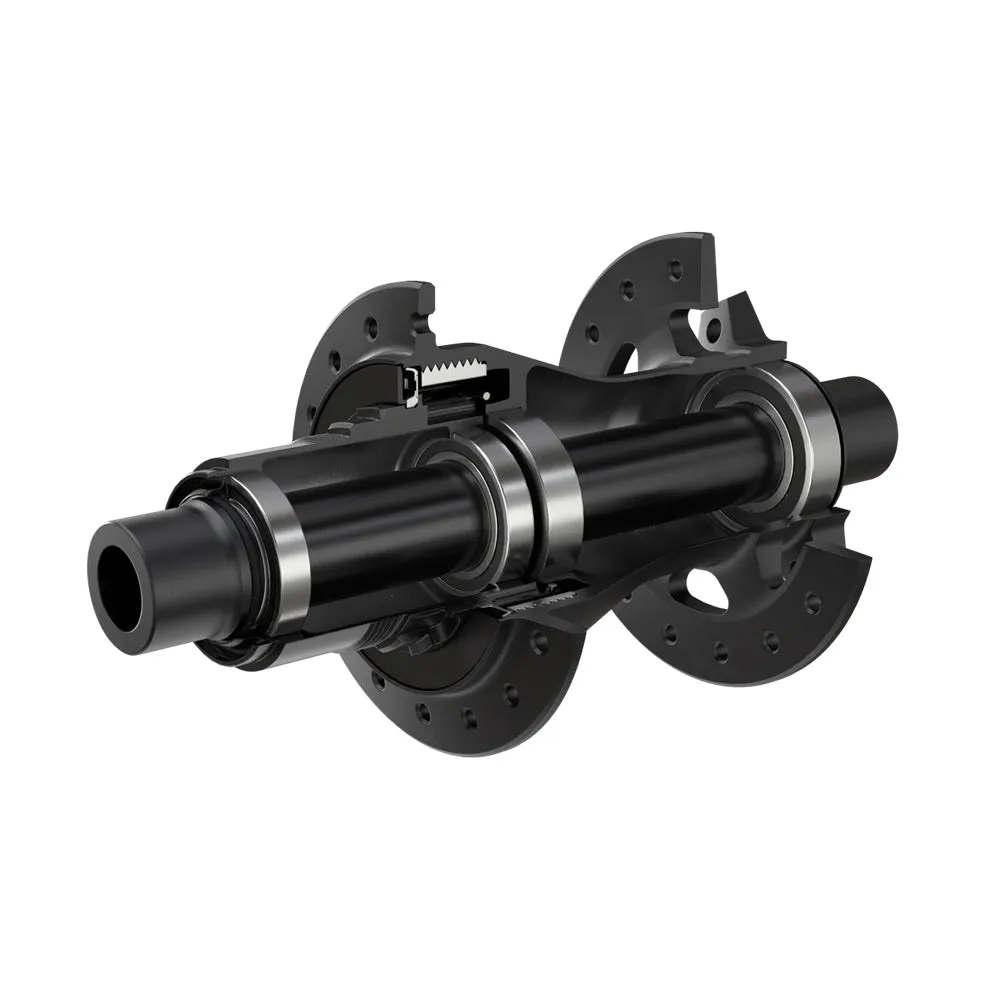

Zipp’s ZM2 hubset delivers dependable precision performance to the gnarliest trail. This German-engineered hubset features 12 pawls and 132 points of engagement for a quicker response. The hub’s improved seal design means better durability on rough terrain. The genius of the ZM2 hub is how we achieved quicker engagement. This hub system works with 12 pawls, in 4 groups of 3, on a 33 teeth ratchet ring. The 33 teeth make the ring strong with pickup that’s reliable and consistent. The 4 groups of 3 pawls are staggered, meaning there’s always 3 pawls engaging at any time, which is good for durability. The ZM2 also has higher load transmission capability. The hub is capable of being used on electric mountain bikes.

FEATURES

• Engineered in Germany with better seal design for improved durability and quicker response with 132 points of engagement
• Designed with 12 pawls – 4 groups of 3 – for quick engagement
• Compatible with e-mountain bikes
• Lifetime Warranty

SPECIFICATIONS

Orientation Front, Rear
Axle type TA 12x148, TA 15x110, TA 15x110 Torque Caps (dia. 31mm)
Spoke holes 32
Brake compatibility Disc (6-bolt)
Driver body type n/a, SRAM XD, SRAM/Shimano MTB
Over Locknut Material n/a
Color (hub) Black
Driver Mechanism 12 Pawls Leaf Spring, 132 POE, n/a
Axle material Aluminum front & rear
Axle - Convertible No
Driver body material Aluminum, n/a
Hub shell n/a
OLD 110mm, 148mm
Bearings Cartridge - Steel
Power Measurement Not Compatible
