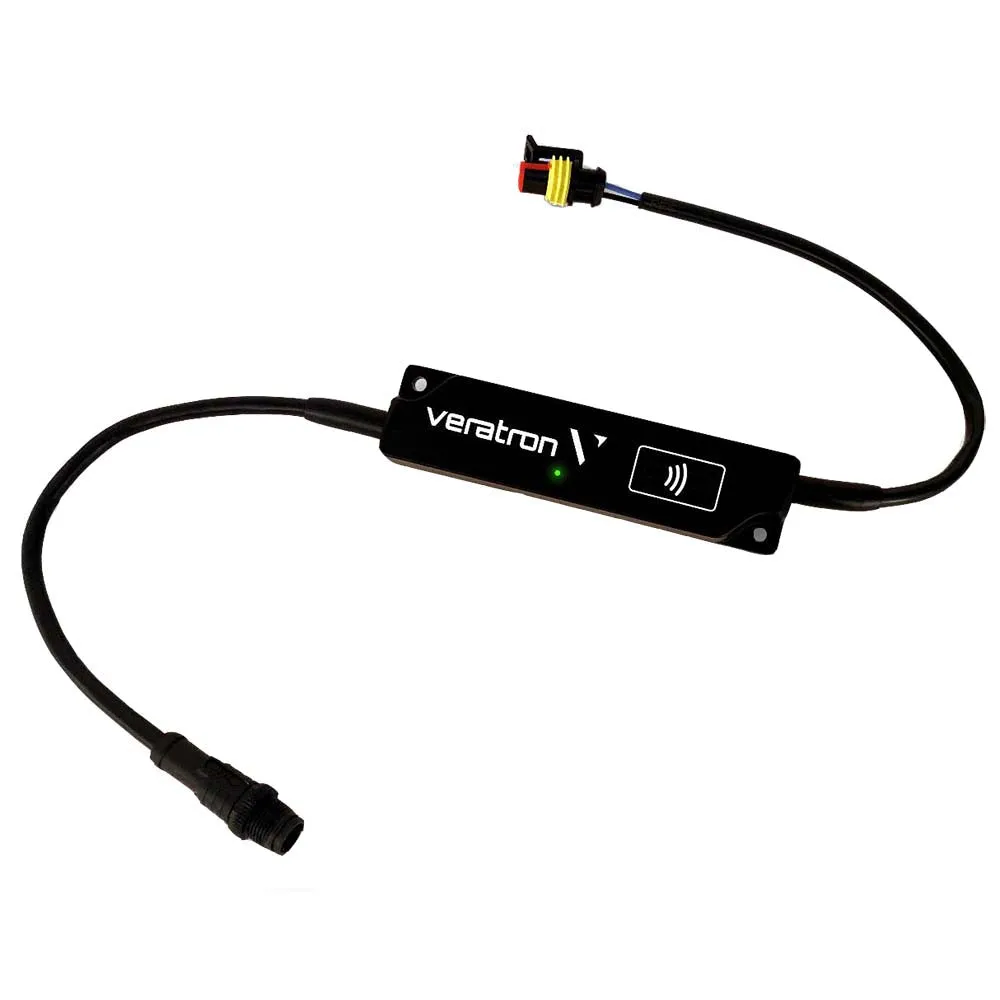

LinkUp J1939 to NMEA 2000 Gateway

This single-sensor gateway is designed to upgrade your vessel sensors to NMEA 2000®. Can be easily configured through either the embedded wireless interface or NMEA 2000® by means of our Configuration Tool.

The ISO 8846:1990 compliance completes the devices by allowing their installation into compartments.

Features:

• Waterproof sensor connection
• No external power supply required
• Wireless configuration through companion mobile App
• Explosion-proof housing body for engine room installation
• Standard DeviceNet M12 plug to interface NMEA 2000
• Input signal - SAE J1939
• Nominal Voltage - 12V

*Sold as an Individual

Specifications:

• Color: Black
• Box Dimensions: 1"H x 6"W x 10"L WT: 0.14 lbs
• UPC: 7640178729513
