Note : Due to increasingly high demand, all bicycle sales are subject to vary in shipping/delivery times.
Take to the trail with a new level of confidence. With its grippy plus-sized tires and smooth-riding suspension, Stance gobbles up rocks, roots and ruts so you get maximum traction and control on rough, technical terrain.
Built with a lightweight ALUXX aluminum frameset and our innovative FlexPoint rear suspension, Stance is the perfect way to improve your trail-riding game. Its 27.5 wheel and tire compatibility gives it a plush ride quality that soaks up bumps and adds more traction and stability. Combined with 120mm of smooth suspension travel front and rear, it’s a confident ride that will have you nailing new lines.
KEY PERFORMANCE FACTORS
Plus-sized compatible
27.5 wheel and tire compatibility gives you added confidence and control on the trail.
Proven suspension setup
FlexPoint rear suspension offers 120mm of travel (plus 120mm fork up front) for smooth-riding confidence on climbs and descents.
High-quality aluminum frame
The lightweight, stiff and durable ALUXX aluminum is hand-built and engineered in-house by the world leader in alloy bicycle technology.
HIGHLIGHTS
Built with a lightweight ALUXX aluminum frameset and our innovative FlexPoint rear suspension, Stance is the perfect way to improve your trail-riding game. Its 27.5 wheel and tire compatibility gives it a plush ride quality that soaks up bumps and adds more traction and stability. Combined with 120mm of smooth suspension travel front and rear, it’s a confident ride that will have you nailing new lines.
OVERDRIVE
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
TUBELESS SYSTEM
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
ALUXX ALUMINUM TECHNOLOGY
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

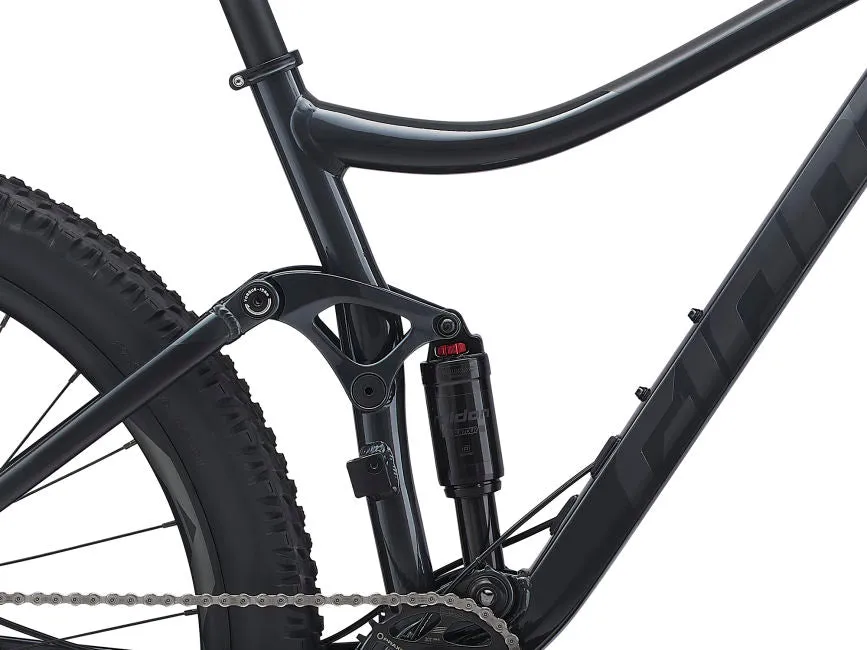

FLEXPOINT SUSPENSION TECHNOLOGY

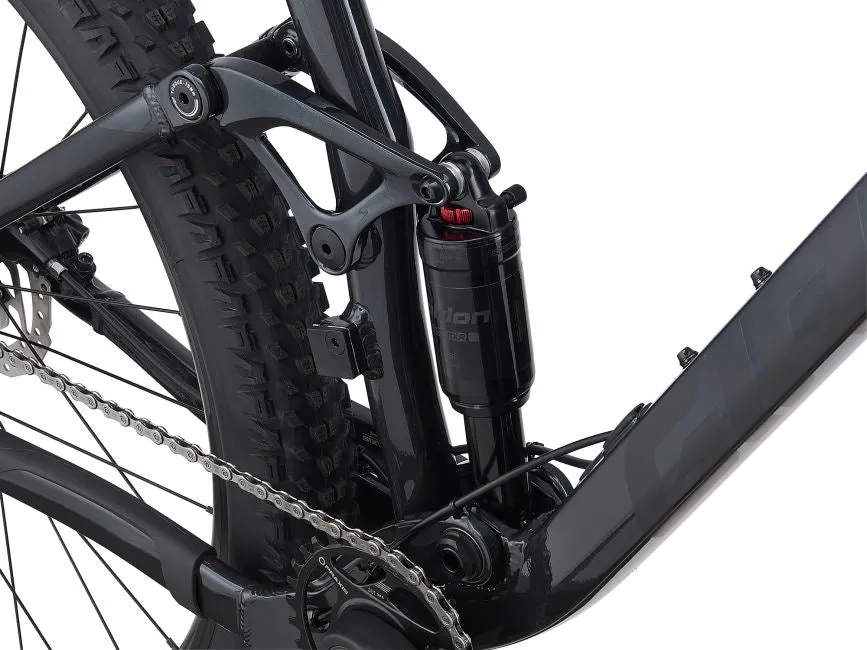

A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
Sizes: S, M, L, XL

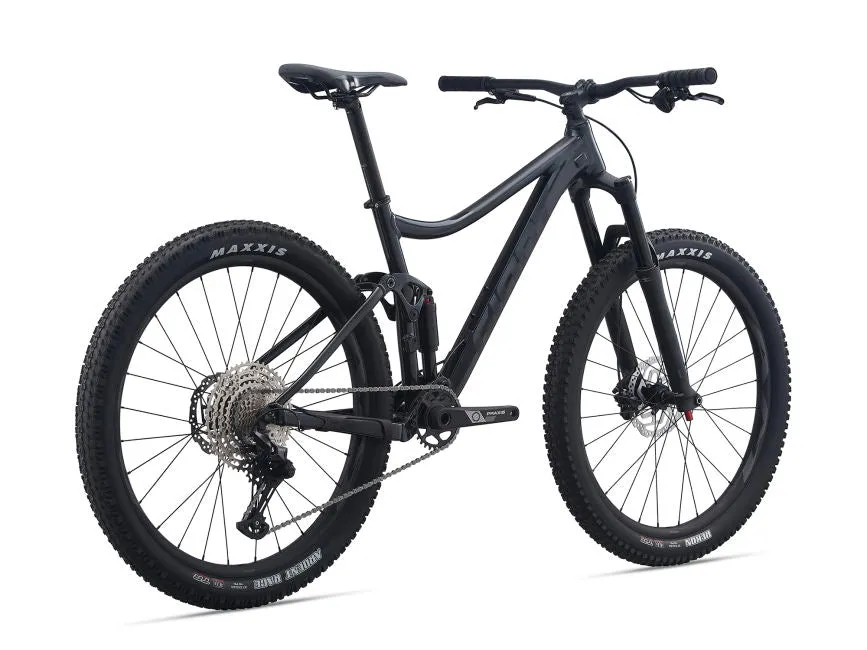

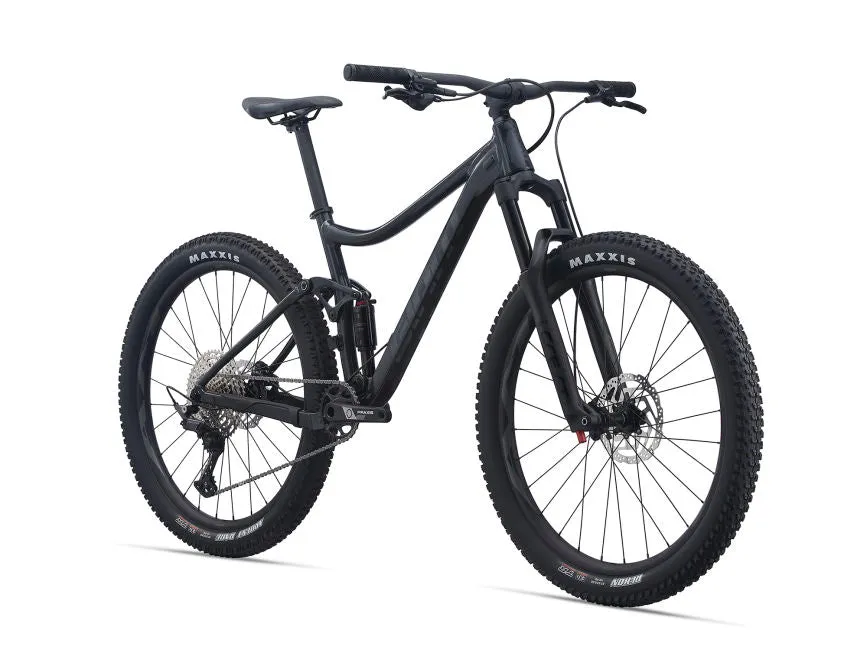

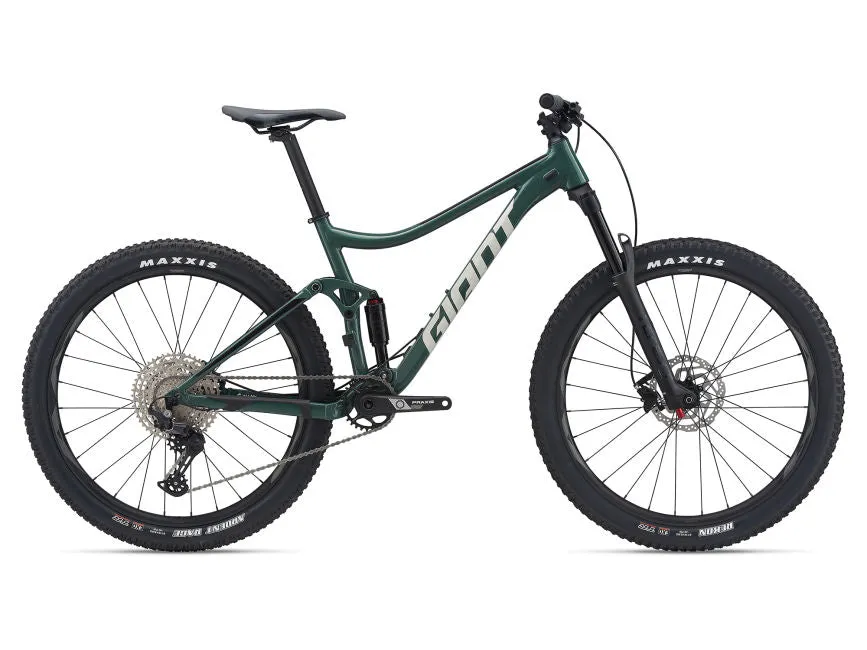

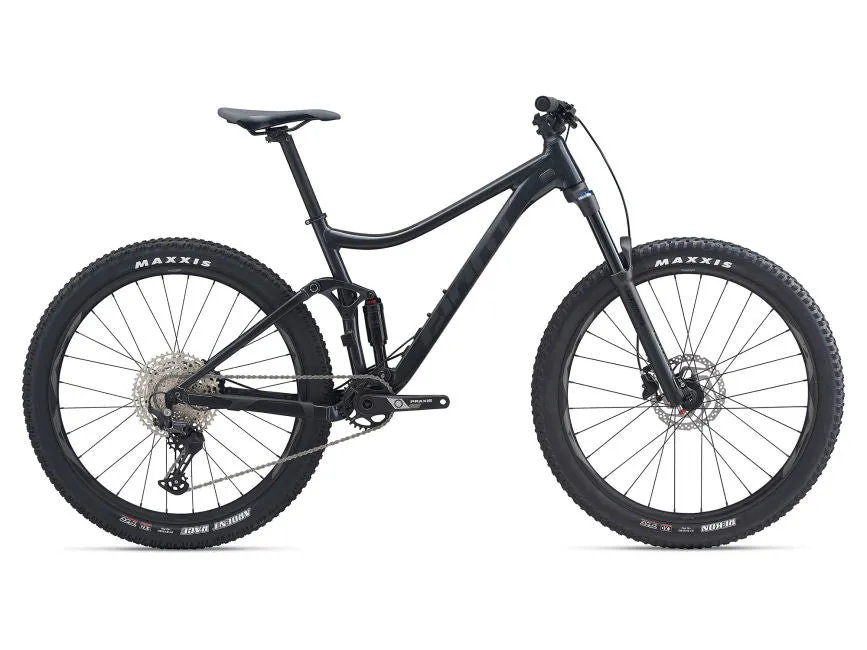

Colors: Trekking Green, Gunmetal Black
Frame: ALUXX-Grade Aluminum, 120mm FlexPoint suspension

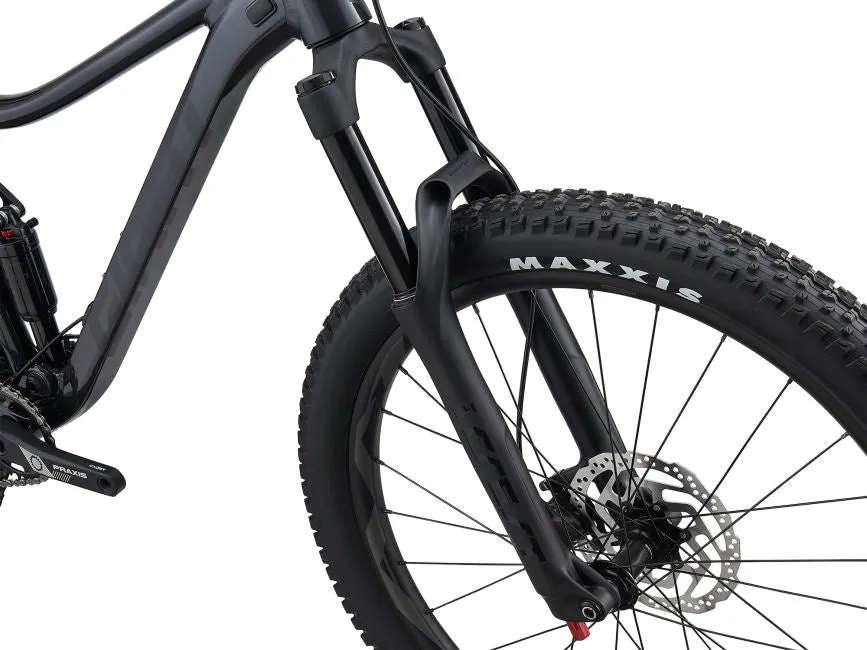

Fork: Giant Crest 34 RCL, 130mm, Boost 15x110
Shock: Suntour Raidon R, 184/44, custom tuned for Giant

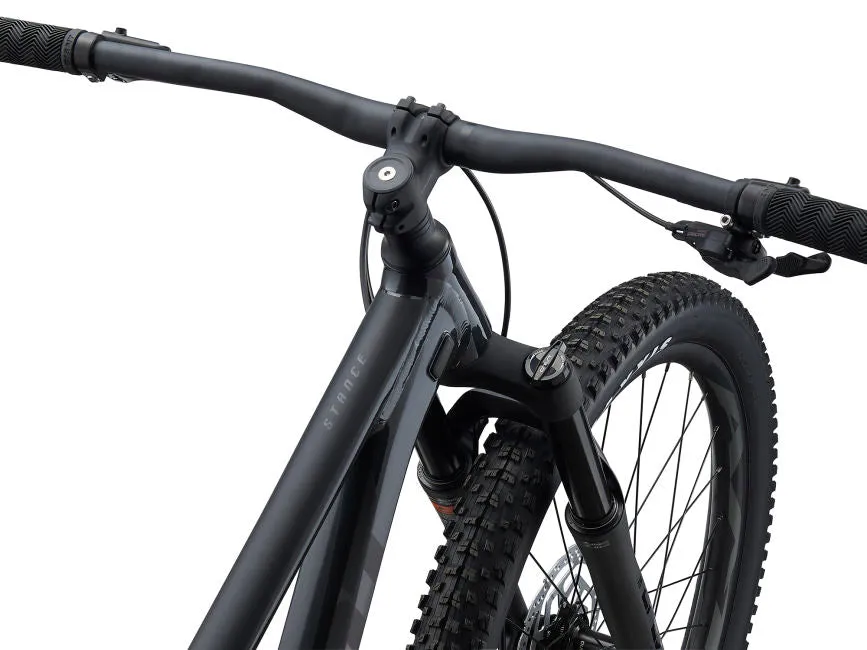

Handlebar: Giant Connect Trail, 31.8
Stem: Giant Contact
Seatpost: Giant Connect, 30.9
Saddle: Giant Romero
Pedals: N/A
Shifters: Shimano Deore
Front Derailleur: N/A
Rear Derailleur: Shimano Deore, Shadow
Brakes: Shimano MT200 hydraulic (F:180mm, R:160mm)
Brake Levers: Shimano MT201

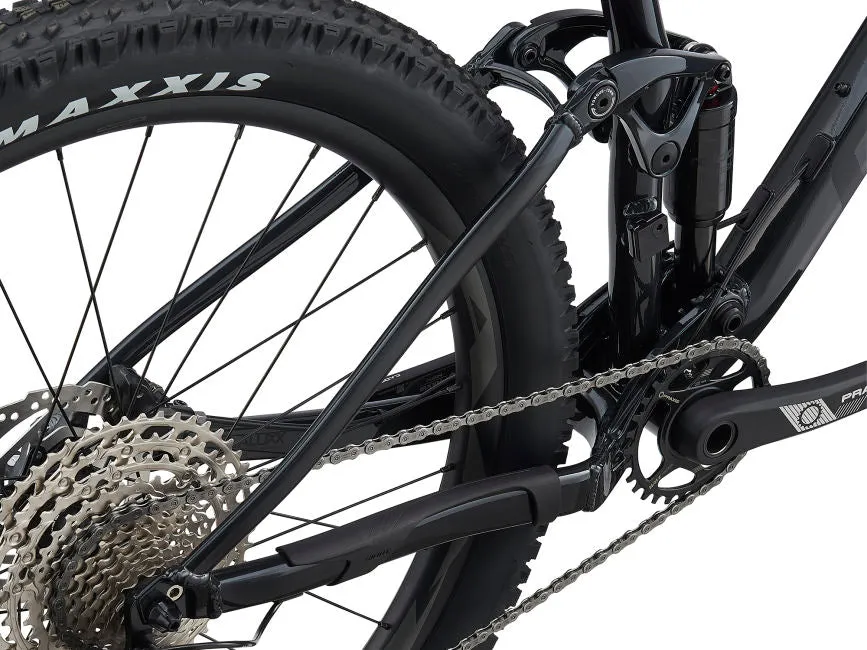

Cassette: Shimano Deore, 12-speed, 10x51
Chain: Shimano
Crankset: Praxis Cadet, 30t
Bottom Bracket: Shimano, press fit
Rims: Giant AM 27.5 wheelset, alloy, 30mm inner
Hubs: [F] Giant Performance Tracker, Boost 15x110, sealed bearing [R] Giant Sport Tracker, QR Boost 141, loose ball
Spokes: Sapim
Tires: [F] Maxxis Rekon 27.5x2.6 WT, EXO, TR, tubeless, [R] Maxxis Ardent Race 27.5x2.6 WT, EXO, TR, tubeless
Extras: Tubeless prepared
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
- XS 5’1” - 5’5”
-
- S 5’4” - 5’8”
- S 5’4” - 5’8”
-
- M 5’7” - 5’11”
-
- L 5’10” - 6’2”
-
- XL 6’2” - 6’6”
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 15.4 | 15.7 | 17 | 19 | 20 |
| B | SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C | TOP TUBE LENGTH (inch) | 22.2 | 23 | 23.8 | 24.6 | 25.4 |
| D | HEAD TUBE LENGTH (inch) | 3.9 | 3.9 | 4.1 | 5.1 | 5.7 |
| E | HEAD TUBE ANGLE | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| H | WHEELBASE (inch) | 43.7 | 44.5 | 45.3 | 46.2 | 47 |
| I | CHAIN STAY LENGTH (inch) | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 |
| J | BOTTOM BRACKET DROP (inch) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| K | STACK (inch) | 22.3 | 22.3 | 22.5 | 23.4 | 23.9 |
| L | REACH (inch) | 15.9 | 16.7 | 17.4 | 17.9 | 18.5 |
| M | STAND OVER HEIGHT (inch) | 27.5 | 27.7 | 28.6 | 30 | 30.5 |
| N | HANDLEBAR WIDTH (inch) | 30.7 | 30.7 | 30.7 | 30.7 | 30.7 |
| O | STEM LENGTH (inch) | 1.6 | 2 | 2 | 2.4 | 2.8 |
| P | CRANK LENGTH (inch) | 6.7 | 6.7 | 6.9 | 6.9 | 6.9 |
| Q | WHEEL SIZE | 27.5" | 27.5" | 27.5" | 27.5" | 27.5" |
Note: In Store Pick Up Only
