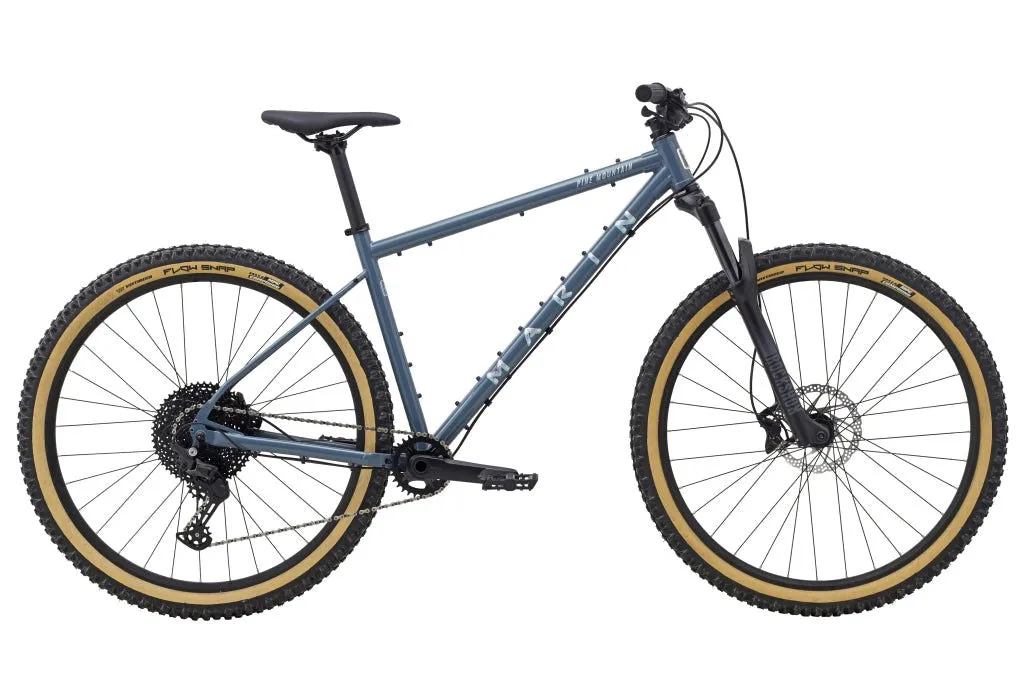

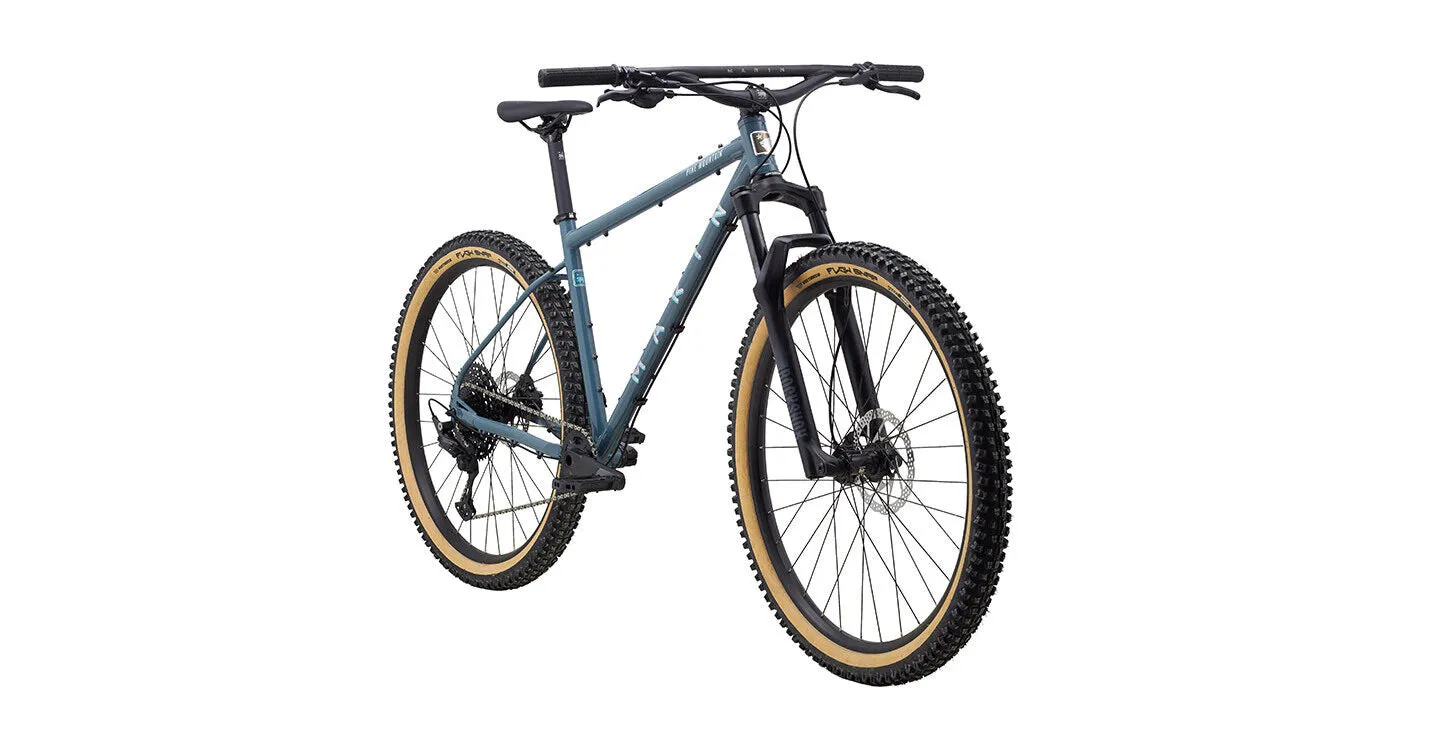

The Marin Pine Mountain 1 is our budget-friendly steel bikepacking mountain bike hardtail. It features fully updated geometry, a series 2 double-butted CrMo frame and all the bikepacking mounts you’ll ever need. All that, combined with a 120mm RockShox Recon RL fork, grippy and dependable Vee Tire co. Flow Snap 2.6” tire, Shimano shifting and our much-loved Marin Bedroll handlebar.



Specifications

Please note - specifications subject to change without prior notice.

01. FRAME	Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
02. FORK	RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
03. RIMS	Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
04. HUB REAR	Forged Alloy, 141x9mm, Disc, 32H
05. HUB FRONT	Forged Alloy, 110x15mm, Disc, 32H
06. SPOKES	14g Black Stainless Steel
07. TIRES	Vee Tire Flow Snap, 29x2.6", Wire Bead
08. DERAILLEUR REAR	Shimano Deore 11-Speed
09. SHIFT LEVER	Shimano Deore 11-Speed
10. CRANKSET	Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, 76mm BCD
11. BOTTOM BRACKET	External Sealed Cartridge Bearings
12. CHAIN	KMC X11
13. CASSETTE	SunRace 11-Speed, 11-51T
14. BRAKES FRONT	Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor
15. BRAKES REAR	Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor
16. BRAKE LEVERS	Shimano MT400 Hydraulic
17. HANDLEBAR	Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
18. STEM	Marin 3D Forged Alloy, 35mm
19. GRIPS	Marin Bear Paw Locking
20. HEADSET	FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
21. SEATPOST	Marin Alloy, 30.9mm
22. SADDLE	Marin Pine Mountain Trail
23. PEDALS	Nylon Platform
24. EXTRAS	Bolt-On Thru-Axle
25. PEDALS	Marin MTB Plastic
